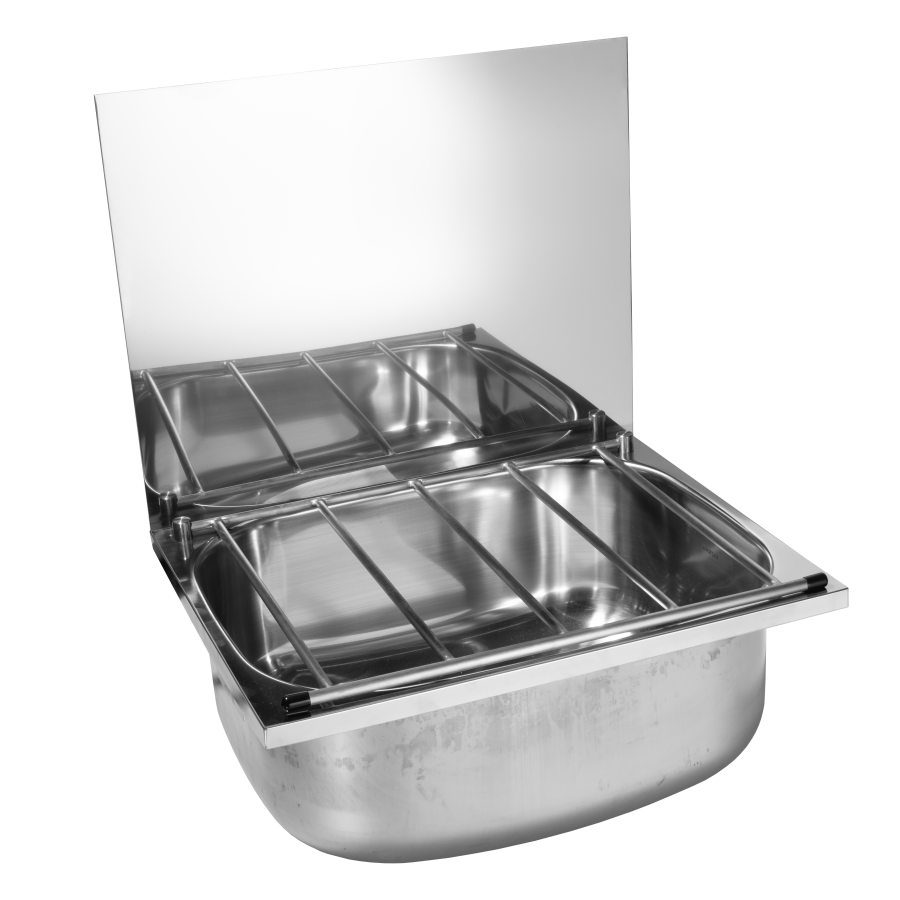

XL Cleaner Sink with bucket grid

Product SKU: WBP321024

Description
Product Details

The XL stainless steel cleaner sink is made in NZ from 0.8mm, 304 Grade stainless steel.

Cleaner sinks can be ordered in a number of configurations which include providing an optional bucket grid with the sink, having the upstand on the left and/or right hand side and manufacturing the unit with or without an overflow.

The XL cleaner sink comes standard with 90mm waste, rear upstand and wall mounting brackets.

Optional extras and configurations to be specified when ordered include bucket grid, overflow and upstand placement.

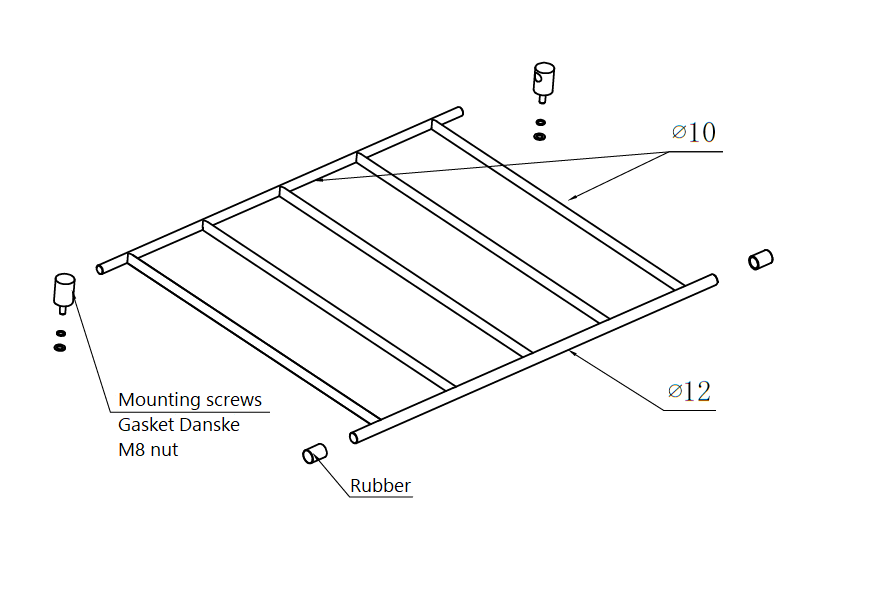

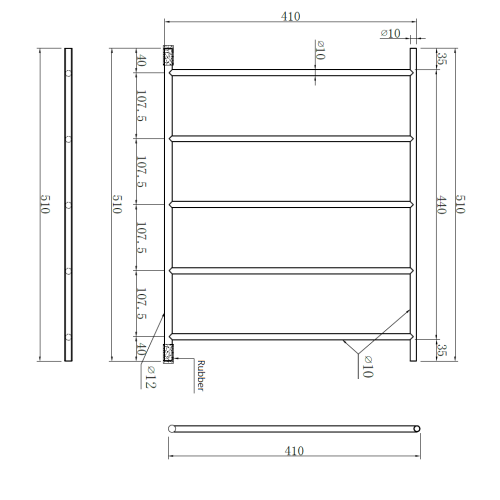

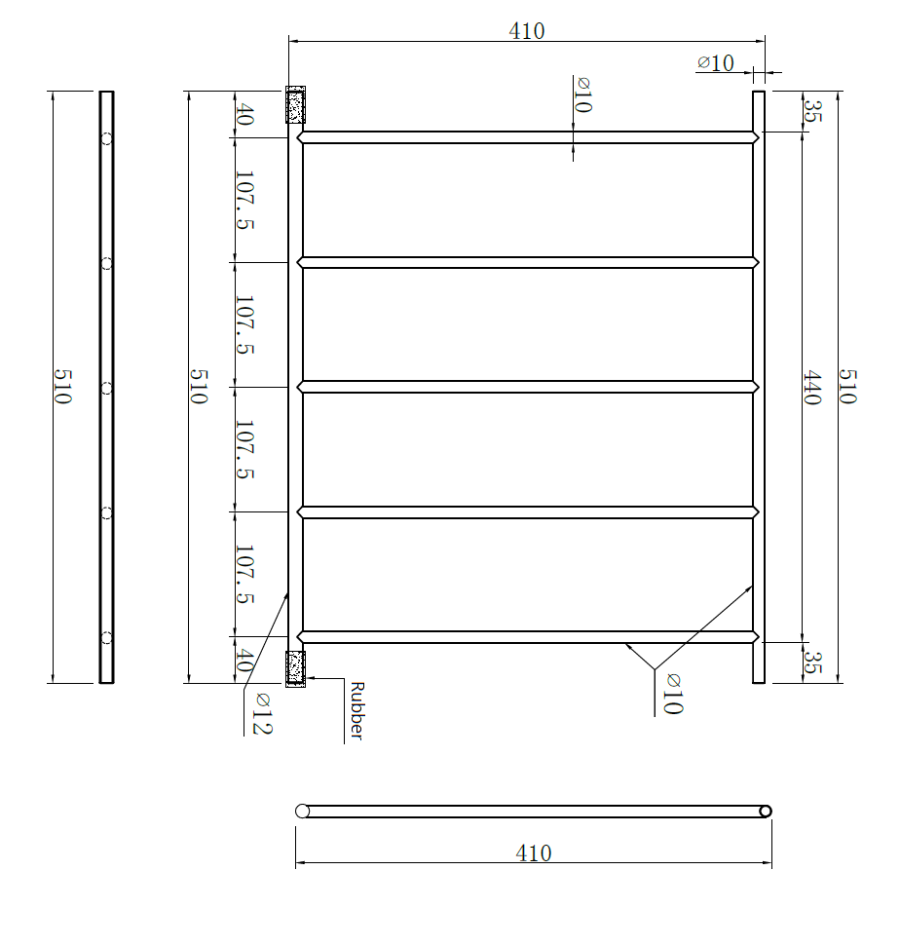

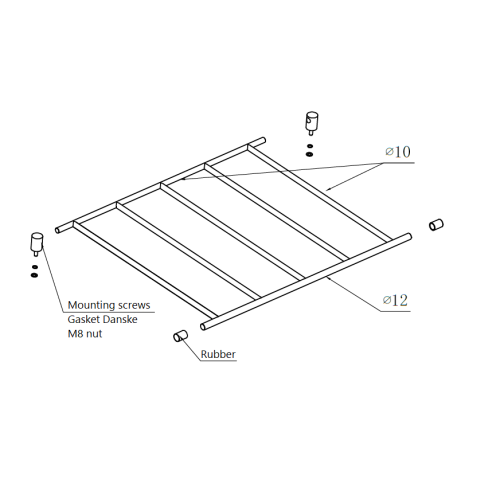

* Please note we have a new bucket grid which will be the same as the last two line drawings (BP321129).

What does this mean?

HAVE A QUESTION? CHAT WITH US

Product details Resources

Specifications

Material

Stainless steel

Bowl size

520mm x 420mm x 230mm

Bowl configuration

Single

Overall size

560mm x 450mm x 230mm

Bowl capacity

45L

Waste

90mm round stainless steel

Overflow configuration

Optional

Upstand

450mm

Ordering guide

Code	Description
Code BP321012-PK	Description XL-PK1 Standard XL cleaner sink with rear upstand, and brackets
Code BP321012-OPK	Description XL-PK1-O XL cleaner sink with rear upstand, brackets, and overflow
Code BP321024-PK	Description XL-PK2 XL cleaner sink with rear upstand, bucket grid, and brackets
Code BP321024-OPK	Description XL-PK2-O XL cleaner sink with rear upstand, bucket grid, brackets, and overflow
Code BP321096-PK	Description XL-PK3-R XL cleaner sink rear and right hand return upstands, and brackets
Code BP321096-OPK	Description XL-PK3-RO XL cleaner sink rear and right hand return upstands, brackets, and overflow
Code BP321084-PK	Description XL-PK3-L XL cleaner sink rear and left hand return upstands, and brackets
Code BP321084-OPK	Description XL-PK3-LO XL cleaner sink rear and left hand return upstands, brackets, and overflow
Code BP321060-PK	Description XL-PK4-R XL cleaner sink rear and right hand return upstands, bucket grid, and brackets
Code BP321060-OPK	Description XL-PK4-RO XL cleaner sink rear and right hand return upstands, bucket grid, brackets, and overflow
Code BP321048-PK	Description XL-PK4-L XL cleaner sink rear and left hand return upstands, bucket grid, and brackets
Code BP321048-OPK	Description XL-PK4-LO XL cleaner sink rear and left hand return upstands, bucket grid, brackets, and overflow
Code BP321038-PK	Description XL cleaner sink rear, right and left hand return upstands, bucket grid, and brackets
Code BP321038-OPK	Description XL cleaner sink rear, right and left hand return upstands, bucket grid, brackets, and overflow

Applications

Education

We provide a wide range of solutions for the educational sector that are engaging and enduring as well as functional and easy to maintain.
Whether in the classroom, staff facilities or washroom, Acero's range of sinkware surfaces and stainless steel products offer an endless array of possibilities, and a one-stop resource that elevates the learning experience.
Our products are perfectly suited to high use, high traffic education sites of any size. Whether it's a lab, a library or a lecture hall, they are low maintenance, impact resistant and fire resistant.
From daycare to universities, we can help you develop a solution to fit.
Healthcare

We provide solutions for specifiers to create functional, inviting spaces that meet all the demands of a modern health care environment.
Acero offers a broad collection of sinkware, stainless steel products and surfaces that address Disinfection, Durability, and Design challenges – for safety, efficiency, and patient comfort making it an ideal choice for high use healthcare areas.
Hospitality

Our surfaces and custom stainless products are suited to the high demand and high traffic hospitality industry.

acero

XL Cleaner Sink Data Sheet

PDF - 455kb Download PDF
Mercer

XL Cleaner Sink Revit drawing

RFA Download PDF
Mercer

XL Cleaner Sink Installation Guide

PDF Download PDF
